Specification:

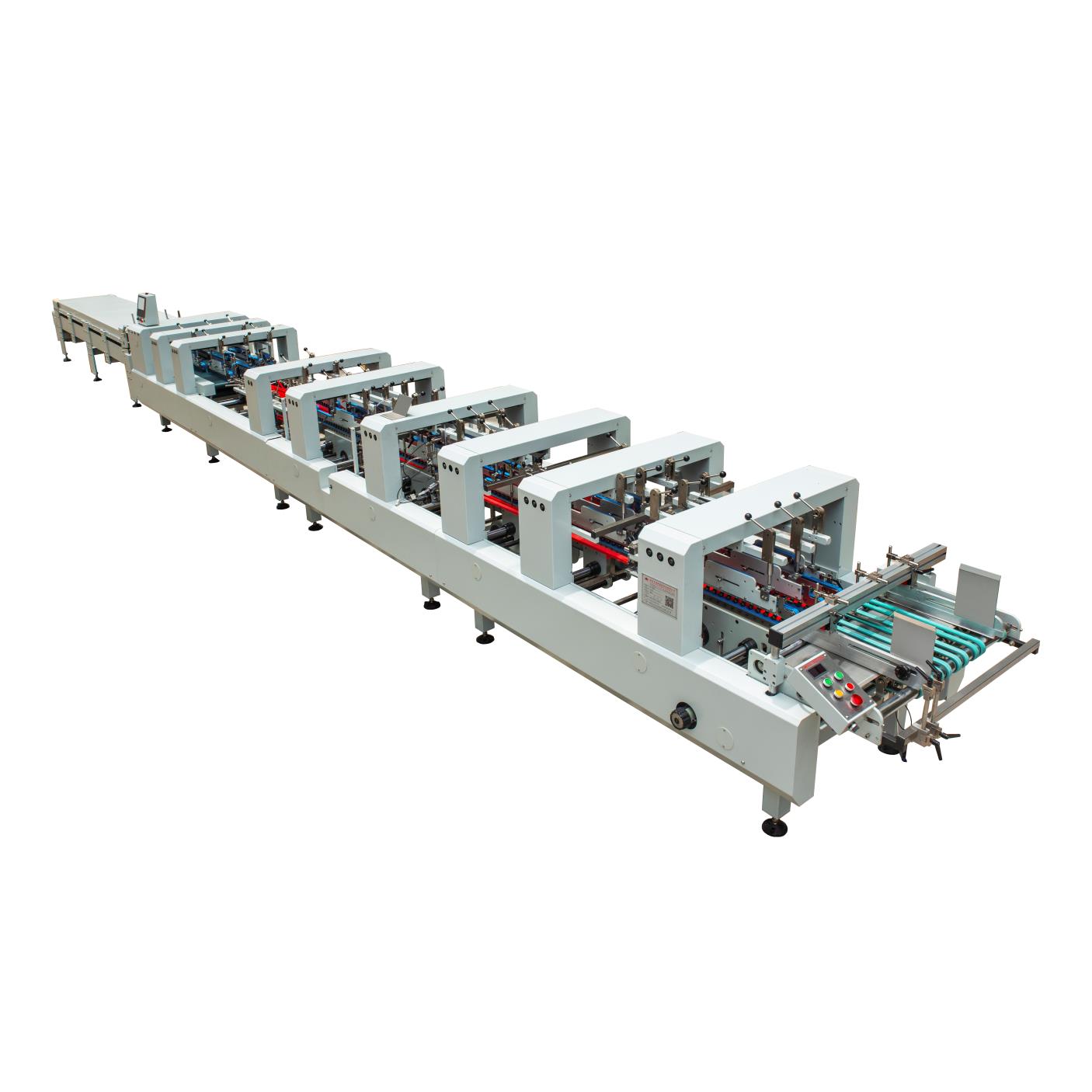

Spacial Tiny Box Lock Bottom System with USA Nordson PUR Applicator.
Model | CL-780G | Max. Box Width | 780mm (expanded) |
Motor | Taiwan Sheng Bond | Min. Box Width | 50mm (expanded) |
Solenoid | USA brand MAC | Speed | 135m/min |
VFD | Japan Panasonic | Machine Length | 16000mm |
Voltage | 380v/50 Hz or 60Hz | Machine Height | 1400mm |
Power | 11kw | Machine Width | 1500mm |
Relay | Schneider | Max. Air Qty | 0.73/min |

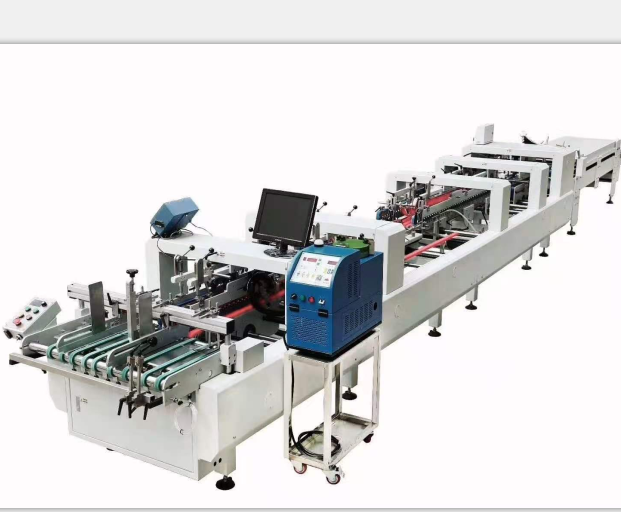

PUR Spray Applicator | USA Nordson
| Machine Weight | 5 Tons |
PLC | Japan Panasonic | Material | PET/PVC/PP transparent or printed plastic box with Die-cut single line or HF soft creasing double line |
1. High speed fully automatic feeding & folding & gluing & Auto bottom lock
(no need do any further process by worker).
2. Single line (by die-cut) or double line (HF soft creasing line) directly can be processed by our machine
( no need pre-fold by worker ).
3. Can glue inner, middle or outer line (1-3 line or 2-4 line).
4. Our machine only need 2 workers, 8 hours can make 70k to 80k pieces for 150mm length boxes.
5. Imported brand name VFD motor, speed adjustable; stable function with low defective rate max. 1%;
high productivity, very economical.
6. Humane design, fast adjust and easy operate, one hex wrench can be used for most parts.

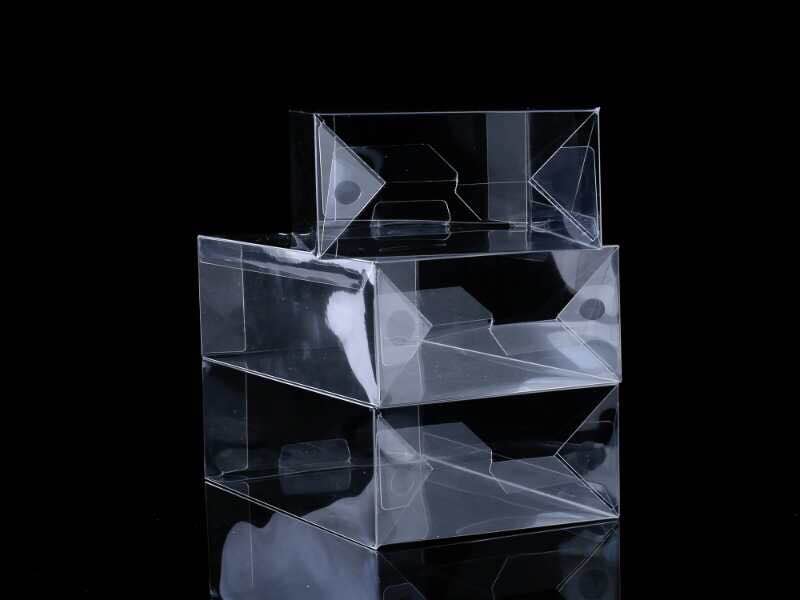

7. Can glue PVC, PET, PP transparent or printed plastic boxes.
8. Feel free to contact for speical needs.
