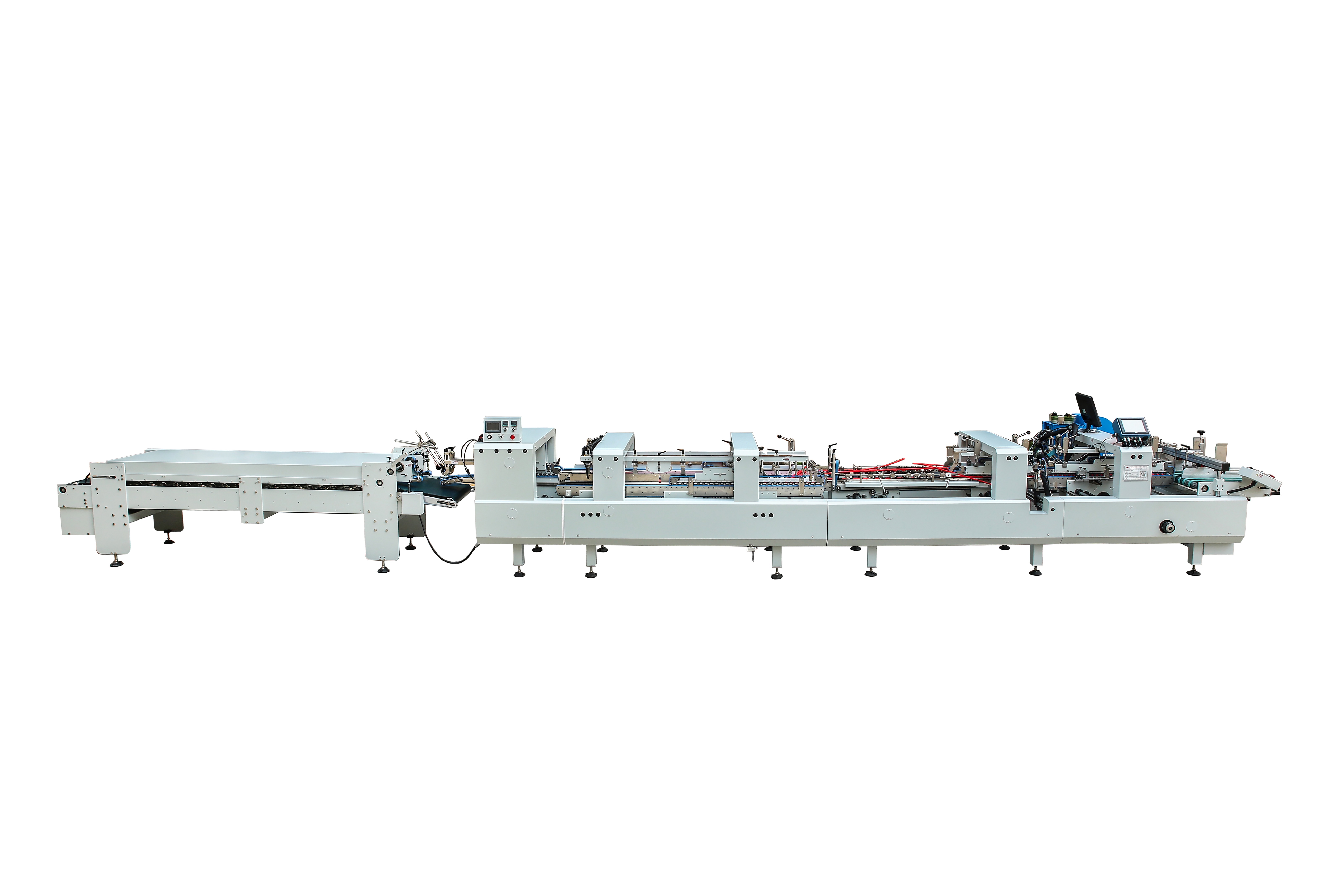

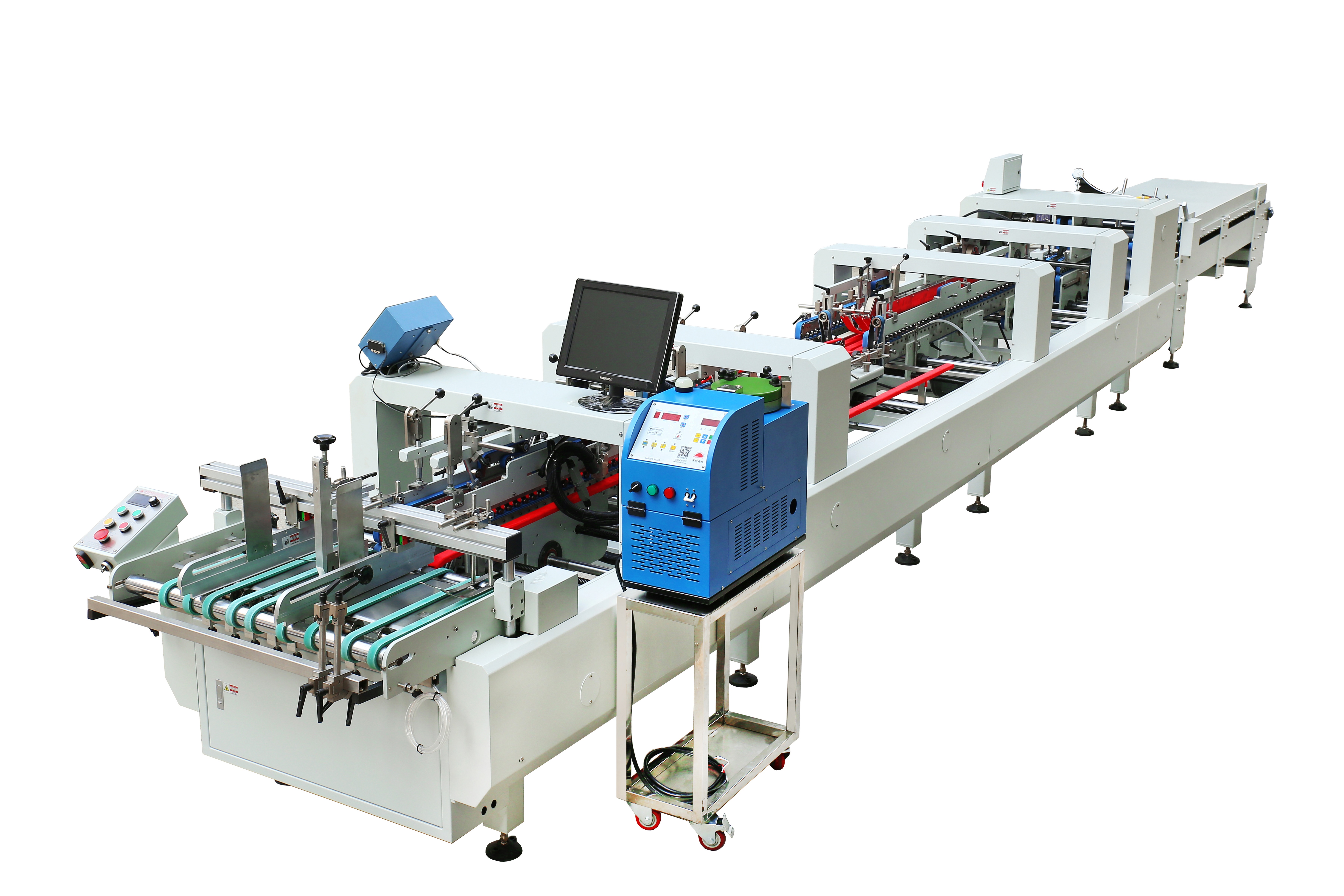

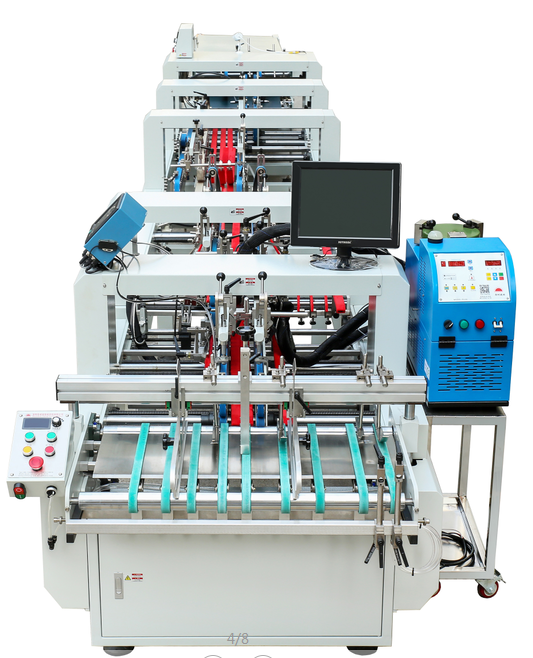

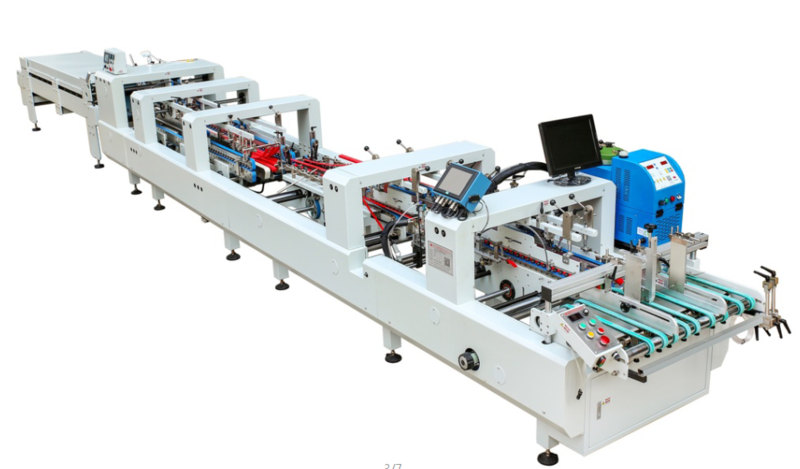

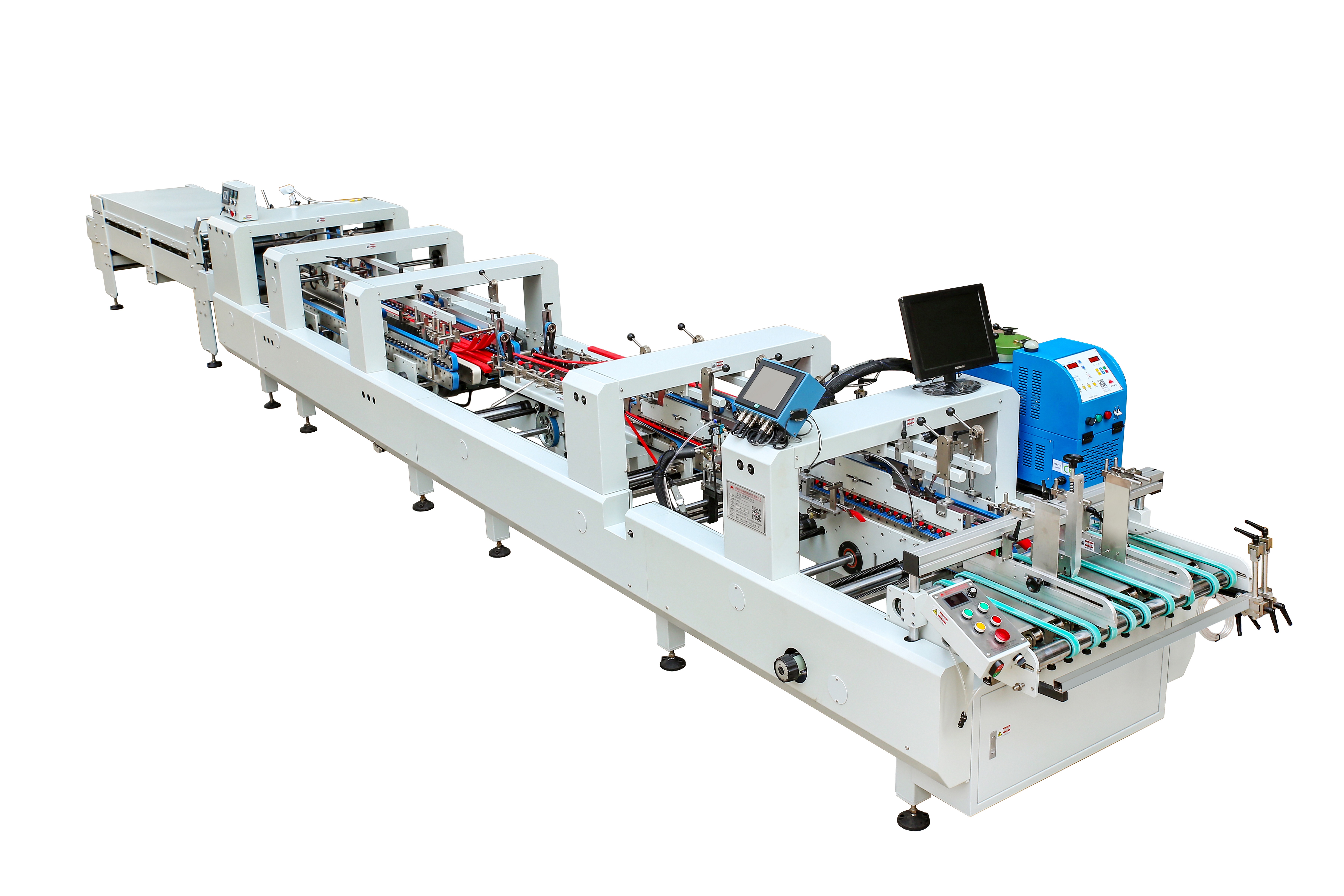

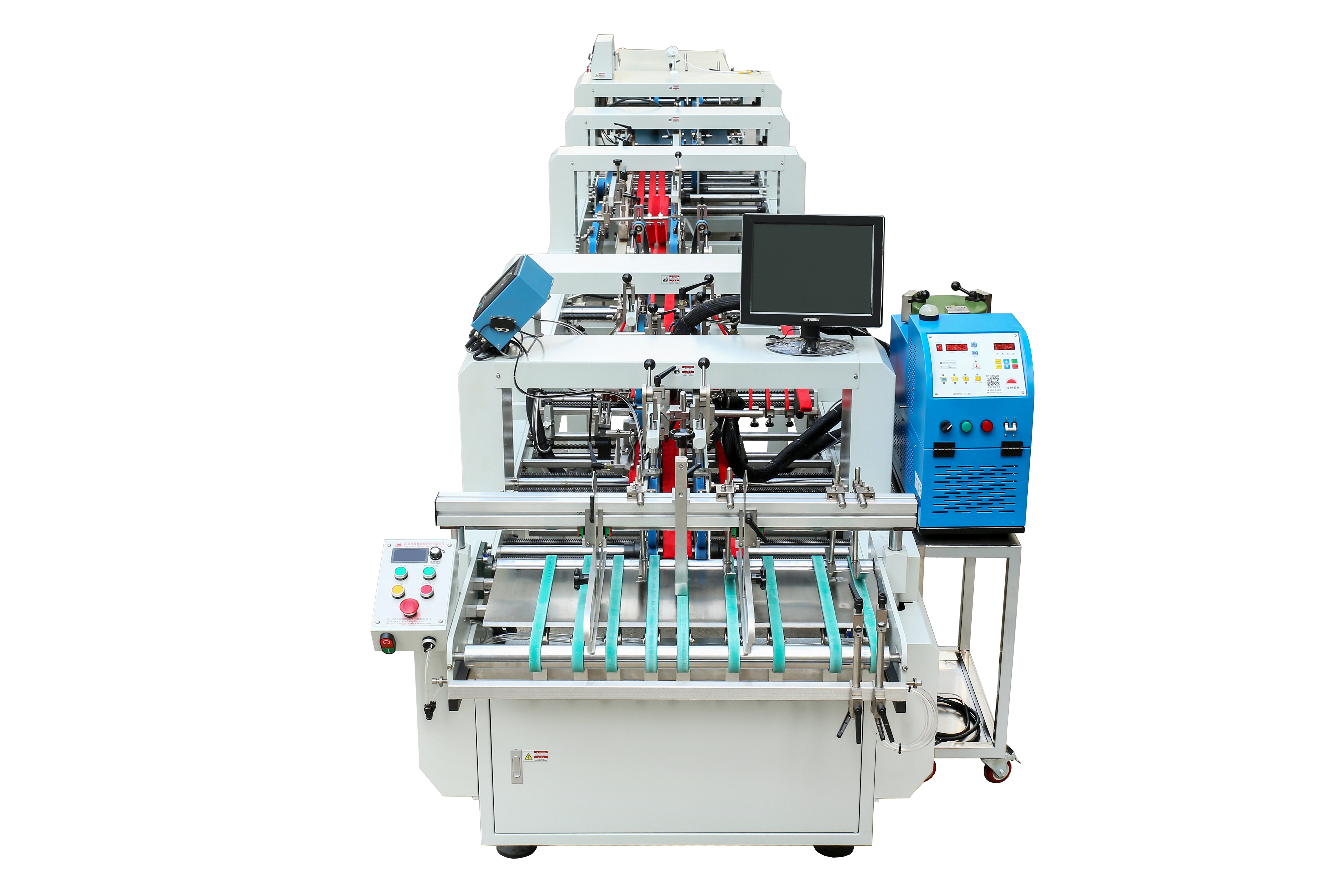

High-speedFully Automatic Bottom Lock & Side Gluing Machine
(Applied for PET / PVC Liquid glue &PUR glue&PP heatsealing)
Model:CL-800GS

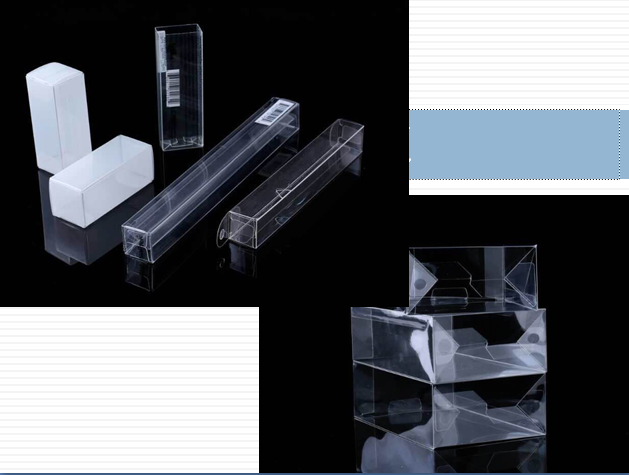

Box material: PVC, PP, PET, PETG, GAGetc.
Function:
--Auto-feeding, Auto-folding,Auto-gluing (Folding side and bottom lock at same time)
--Adjustable, able to glue either 1-3 or2-4 line, stick inner or middle or outer.
--Suitable for single line (die-cut), ordouble line (creasing line from high frequency)
--4 in 1 functions (4 gluing systems canpaste PP box with hot air, PET/PVC box with water glue, spray PUR glue , gluetiny box like eyeliner package etc. )
Advantage:
--One hex wrench is able to adjust thecomplete machine parts, easy operates and maintenance, low sound & highefficiency, defective rate below 1% to save your running and labor cost.
--Humane design for faster and easieradjusting, monolithic construction & compact machine.
-- Brand name components and electronicswith Cheng Lin made for310ml bottle packing; Lock bottom use Taiwan made PUR spray applicatorappliable with 2-2.5kg bag PUR glue.
--VFD powerful motor, up to200meter/min, strong belt drive, low noise, high efficiency, easy maintenanceand economical
--Able to fold and glue all shapes ofbox per our various designs.
-- Aligner section, equipped withauto-correction device to correct the obliquity and ensure the correct feeding.
-- Driving belt and folding belts haveauto-correct function and extension make it going more smoothly.
Specification:
Machine Parameter | Specification |
Model | Auto high speed folding and bottom lock gluing machine CL-800GS | Max. Box Width | 800mm (expanded) customized |
Motor | Taiwan Sheng Bond | Min. Box Width | 50mm (expanded) customized |
Solenoid | USA brand MAC | Speed | 135m/min customized |
VFD | Japan Panasonic | Machine Length | 1000mm |
Voltage | Customized (standard stock 380v/50 Hz or 60Hz) | Machine Height | 1400mm |
Power | 11kw | Machine Width | 1500mm |
Relay | Schneider | Max. Air Qty | 0.73/min |
PUR Spray System | Taiwan made complete equipment | Machine Weight | 3.5tons |
PLC | Japan Panasonic | Material | PET/PVC/PP transparent or printed box |
|
| Box Line | Die-cut line or creasing line from high frequency |

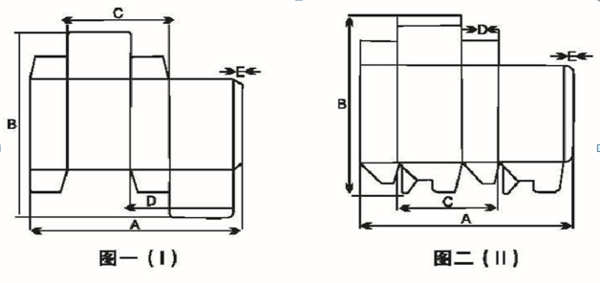

Box dimension (customized):
Model | Box Type | A Max. | A Min. | B Max. | B Min | C Max. | C Min. | D Min. | E Min. |
CL-800GS | Straight-Line Box (refer. 1) | 800 | 50 | 500 | 65 | 370 | 50 | 7 | 6 |
Crash-Lock Bottom Box (refer. 2) | 800 | 160 | 500 | 65 | 370 | 80 | 40 | 6 |

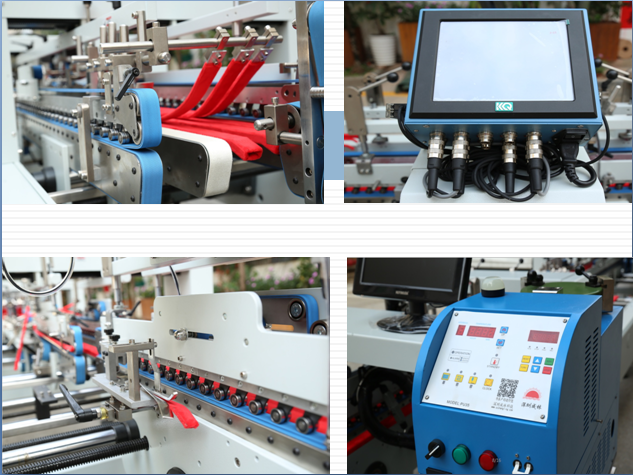

Machine Details:
